Flexible PCB In Medical Devices

CASES

We have extensive experience in manufacturing flexible circuit boards for medical instruments, and we can produce the flex PCBs required for popular home beauty devices.

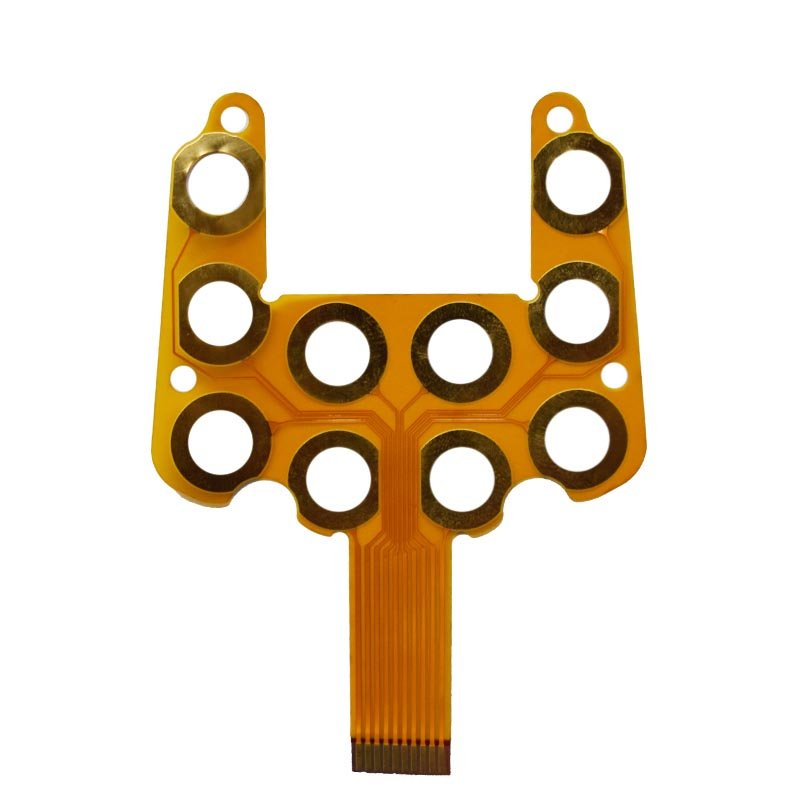

Medical Beauty Instrument Single Layer Flex PCB

Medical Beauty Instrument Single Layer Flexible Circuit Board

Base materialPolyimide FCCL
Surface FinishHASL/OSP/ENIG
Copper Thickness1oz; 1/2 oz; 1/3 oz;
Board Thickness0.07-0.5MM
Used for Beauty Instrument;

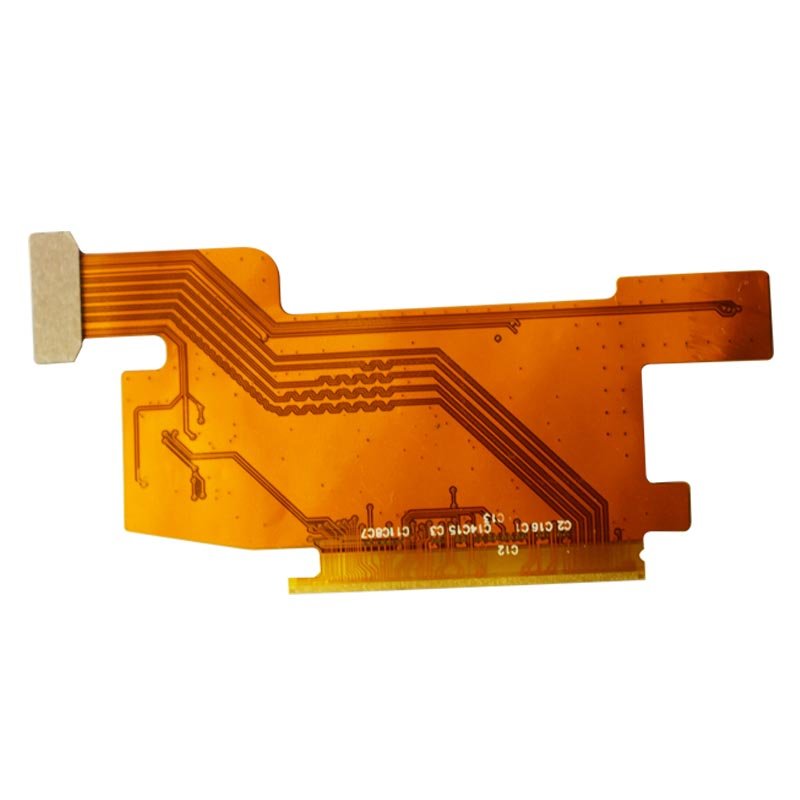

Medical Beauty Instrument Double Layer Flex PCB

Medical Beauty Instrument Double Layer Flexible Circuit Board

Base materialPolyimide FCCL
Surface FinishHASL/OSP/ENIG
Copper Thickness1oz; 1/2 oz; 1/3 oz;
Board Thickness0.07-0.5MM
Used for Beauty Instrument;

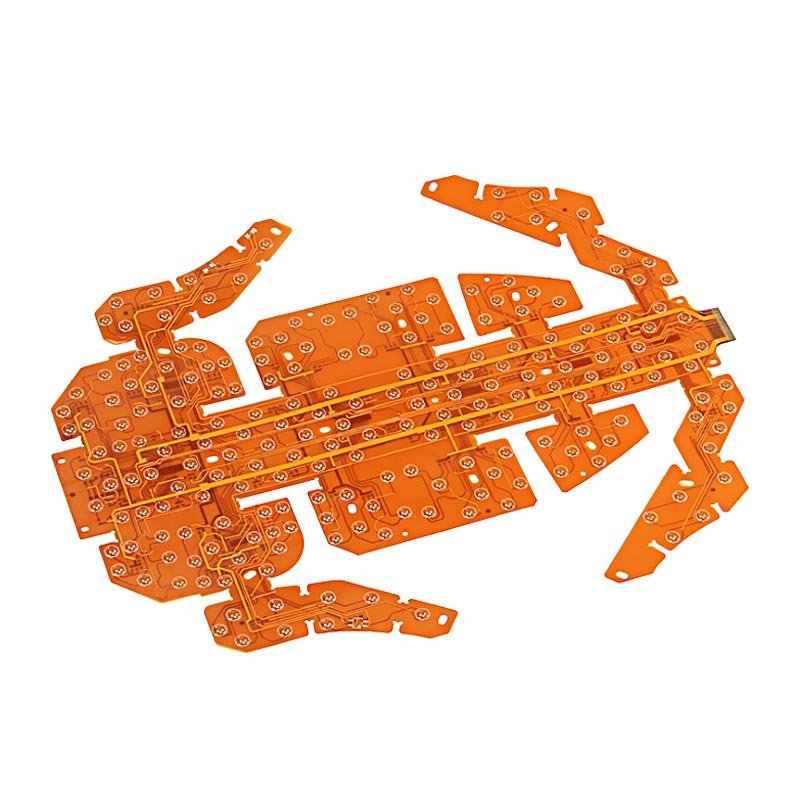

Laser Hair Growth Cap Double Sided Flex PCB

Laser Hair Growth Cap Double Sided Flexible Circuit Board

Base materialPolyimide FCCL
Surface FinishHASL/OSP/ENIG
Copper Thickness1oz; 1/2 oz; 1/3 oz;
Board Thickness0.07-0.5MM
Used for Laser Hair Growth Cap;

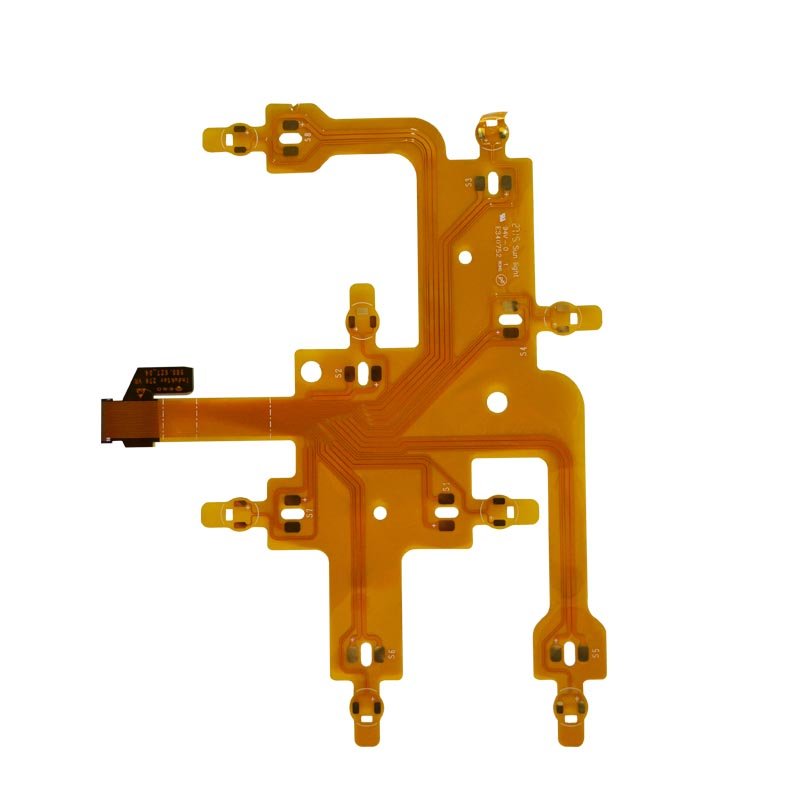

Medical Cervical Spine Care Device Double Flex PCB

Medical Cervical Spine Care Device Double Flexible Circuit Board

Base materialPolyimide FCCL
Surface FinishHASL/OSP/ENIG
Copper Thickness1oz; 1/2 oz; 1/3 oz;
Board Thickness0.07-0.5MM
Used for Neck Care Machine;

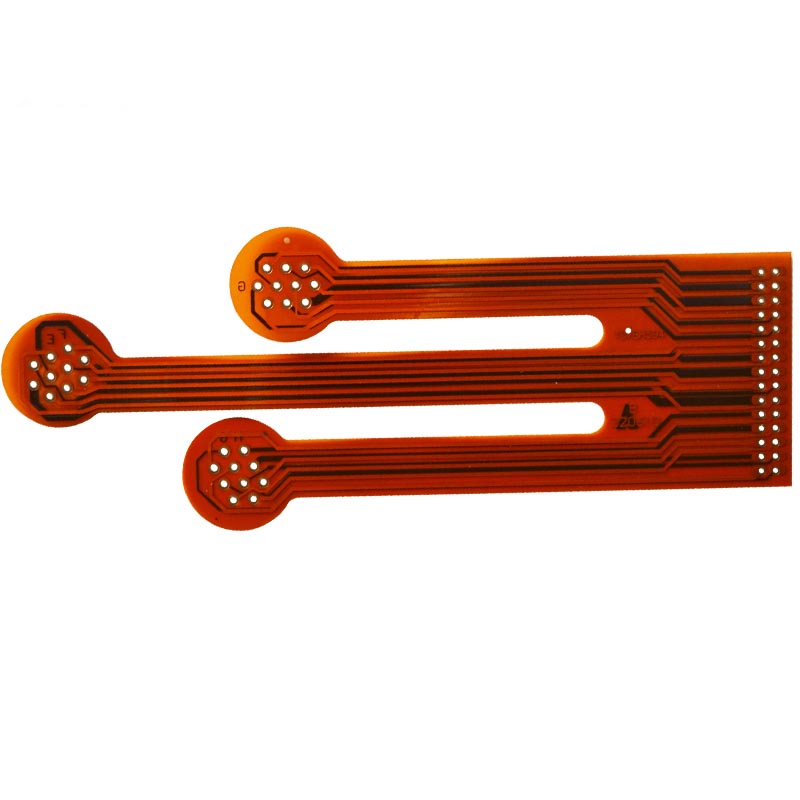

Medical Device Oximeter Flex PCB

Medical Device Oximeter Flexible Circuit Board

Base materialPolyimide FCCL
Surface FinishHASL/OSP/ENIG
Copper Thickness1oz; 1/2 oz; 1/3 oz;
Board Thickness0.07-0.5MM
Used for Oximeter;

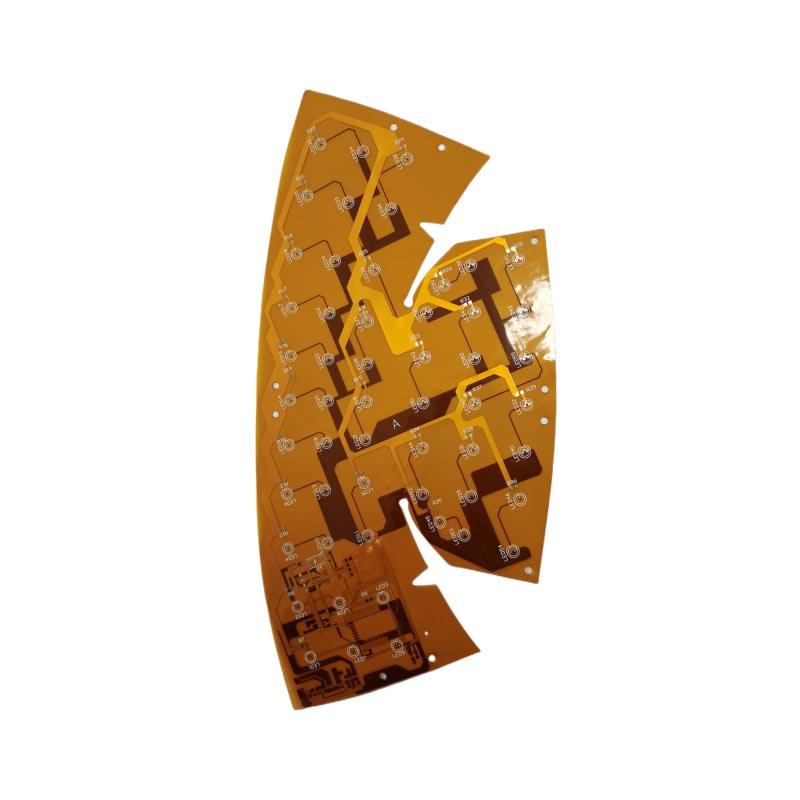

Hair Growth Machine Flex PCB For Beauty Care Instrument
The solder mask is available in various colors including green, red, blue, white, black, and yellow.
We offer a variety of options for stiffener materials, including FR-4, steel, PI (polyimide), and battery film.

Hair Growth Machine Flexible Circuit Board For Beauty Care Instrument

Number of layersSingle layer
Base materialPolyimide; Electrolytic copper; Calendered copper;
Copper Thickness0.5oz-6oz
Min. Hole Size0.1mm
Min. Line Width0.04mm
Min. Line Spacing0.04mm
Surface FinishingHASL/OSP/ENIG/Immersion Silver/Tin/Ni/ENIG
Board Size240mm/480mm/2000mm
Max Board Size400mmX800mm
Applicable product: Anti Hair Loss Diodes Hair Growth Helmet.

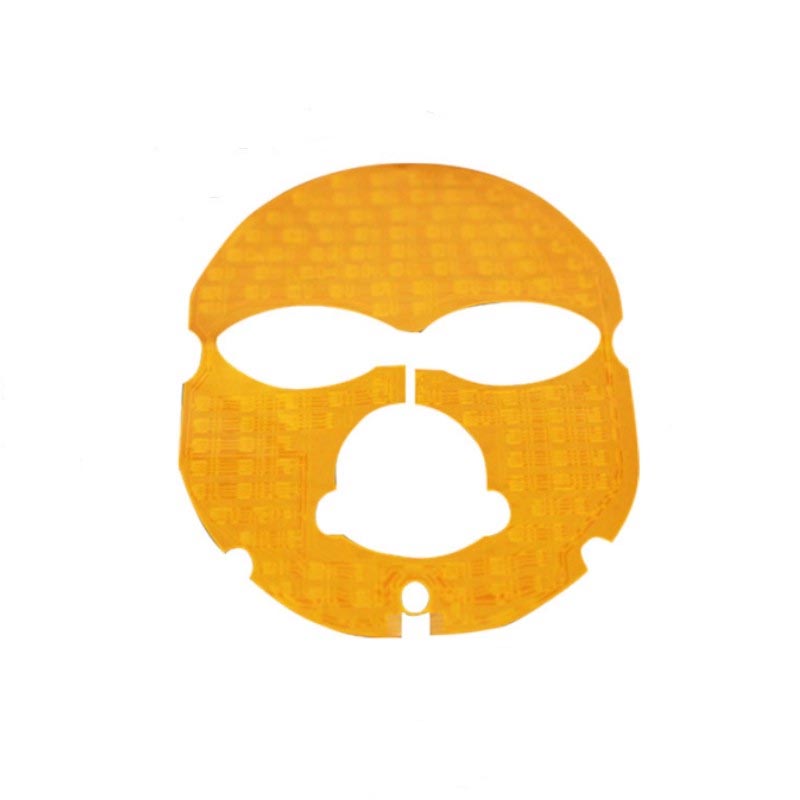

Face Mask Machine Flex PCB For Beauty Care Instrument
The solder mask is available in various colors including green, red, blue, white, black, and yellow.
We offer a variety of options for stiffener materials, including FR-4, steel, PI (polyimide), and battery film.

Face Mask Machine Flexible Circuit Board For Beauty Care Instrument

Number of layersSingle layer
Base materialPolyimide;
PI thickness25μm; 12.5μm;
Copper Thickness1 oz; 2 oz; 1/2 oz; 1/3 oz;
Min. Hole Size0.1mm
Min. Line Width0.04mm
Min. Line Spacing0.04mm
Surface FinishingHASL/OSP/ENIG/Immersion Silver/Tin/Ni/ENIG
Board Size240mm/480mm/2000mm
Adhesive13μm
Board Thickness0.07-0.5MM
Applicable product: Medical esthetics Face Mask Device.

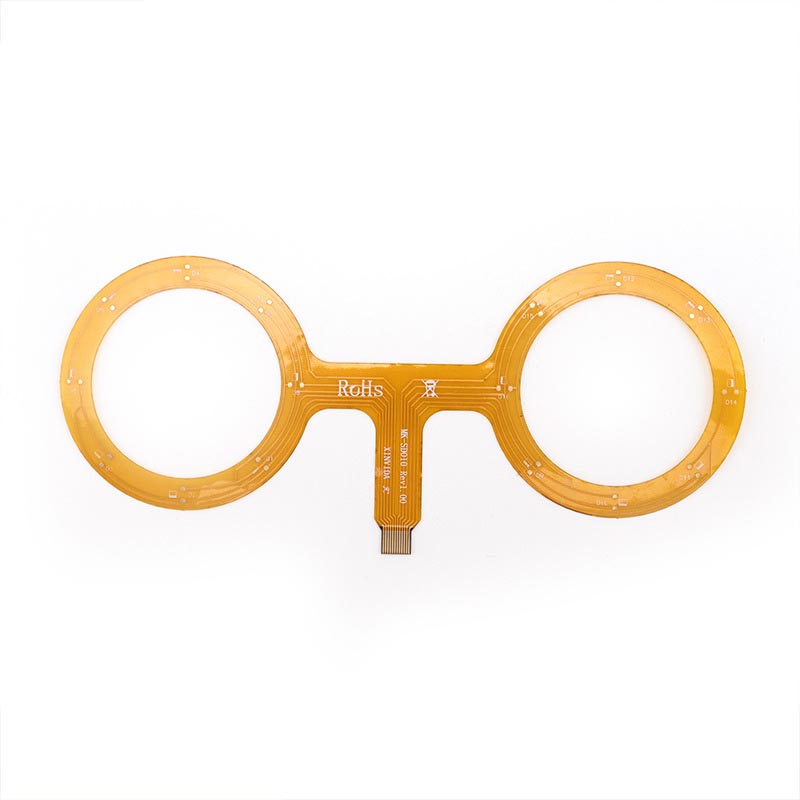

Eye Massager Flex PCB For Beauty Care Instrument
The solder mask is available in various colors including green, red, blue, white, black, and yellow.
We offer a variety of options for stiffener materials, including FR-4, steel, PI (polyimide), and battery film.

Eye Massager Flexible Circuit Board For Beauty Care Instrument

Number of layersSingle layer
Base materialCopper;
Reinforcing materialComposite base
Insulating materialElectrolytic copper; Non-gel electrolytic copper; Calendered copper; Non-gel calendered copper
Insulation layer thicknessThin plate
Insulating resinPolyimide resin (PI)
Flame retardant propertiesVO board
Processing technologyRolled foil
Silk ScreenWhite
Applicable product: Medical esthetics Eye Massager Device.
Notice: We have only showcased a partial range of product examples. Send us an email to inquire and obtain more cases.

Request Flex PCB Quote
