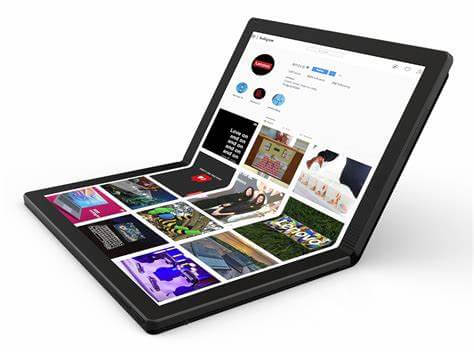

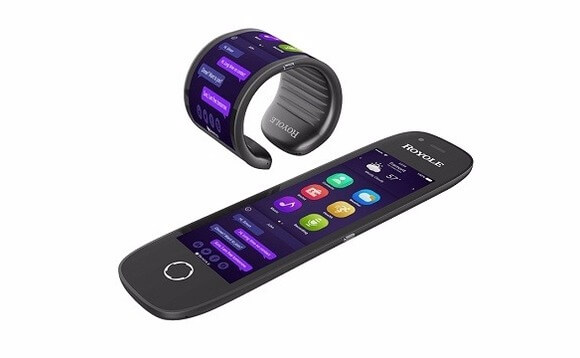

Flexible circuit boards (FPCs) are extensively utilized in various applications. What are the key characteristics of flexible circuit boards? Let's explore them briefly.
Flexibility and reliability of flexible circuit boards
Flexible circuit boards (FPCs) possess key characteristics such as flexibility and reliability. Currently, there are four types of FPCs: single-sided, double-sided, multi-layer flexible boards, and rigid-flex boards.
- Single-sided flexible boards are the most cost-effective option with low electrical performance requirements. They consist of a chemically etched conductive pattern on a flexible insulating substrate with rolled copper foil.
- Double-sided flexible boards have conductive patterns etched on both sides of the insulating base film. Metallized holes connect the patterns on both sides to establish a conductive path, enabling flexible design and functionality.
- Multi-layer flexible boards involve laminating three or more layers of single-sided or double-sided flexible circuits. Metallized holes are created through drilling and electroplating, facilitating conductive paths between different layers. The use of multilayer circuits enhances reliability, improves thermal conductivity, and simplifies assembly.
- Traditional rigid-flex boards combine rigid and flexible substrates through selective lamination. These boards feature a compact structure, and conductive connections are established via metallization. Rigid-flex boards are suitable when components are present on both the front and back sides. However, if all components are on one side, a more economical option is to use a double-sided flexible board with an additional layer of FR4 reinforcement laminated on the back.
- Hybrid structure FPCs are multilayer boards with conductive layers composed of different metals. They may use FR-4 as the inner dielectric and polyimide as the outer dielectric. Leads extend from the main board in multiple directions, each made of a different metal, such as Constantan alloy, copper, and gold. Hybrid structure FPCs are typically employed in low-temperature environments where there are stringent requirements regarding the relationship between electrical signal conversion, heat conversion, and electrical performance. They provide a feasible solution in such scenarios.
To achieve the best performance-to-price ratio, the selection and evaluation of FPCs should consider factors such as convenience and overall cost of interconnected design.
The economy of flexible circuit boards
The economy of flexible circuit boards depends on various factors. If the circuit design is simple, the volume is small, and there is sufficient space, traditional interconnection methods are generally more cost-effective. However, for complex circuits with multiple signals or specific electrical and mechanical requirements, flexible circuits offer a better design choice.
Flexible assembly becomes more economical when the size and performance requirements exceed the capabilities of rigid circuits. Flex circuits with 12mil pads, 5mil through-holes, and 3mil line and space can be fabricated on a single film, allowing for direct chip mounting and increasing reliability.
The high cost of raw materials is a significant contributor to the overall price of flexible circuits. Raw material costs vary widely, with polyester flexible circuits being 1.5 times the cost of rigid circuits and high-performance polyimide circuits being four times or more expensive.
The flexibility of the materials used in flexible circuits makes automated manufacturing processes challenging, resulting in lower yields and potential defects during assembly, such as attachment peeling or line breakage. Reinforcing materials are often necessary to withstand high stresses caused by bending or forming.
Despite the higher raw material costs and manufacturing complexities, foldable, bendable, and multi-layer capabilities of flexible circuits can reduce overall assembly size and material usage, thereby reducing total assembly costs.
The flexible circuit industry is experiencing rapid development, with the polymer thick film method emerging as an efficient and cost-effective production process. This method involves selectively screen printing conductive polymer inks on inexpensive flexible substrates, such as PET. Polymer thick film conductors utilize screen-printed metal fillers or carbon powder fillers. This process is clean, utilizes lead-free SMT adhesives, and eliminates the need for etching. Due to the addition process and lower substrate costs, polymer thick film circuits are one-tenth the price of copper polyimide film circuits and approximately half to one-third the price of rigid circuit boards.
